Model Whirlpool 1265^0A GAS RANGE – Common Parts & Diagrams

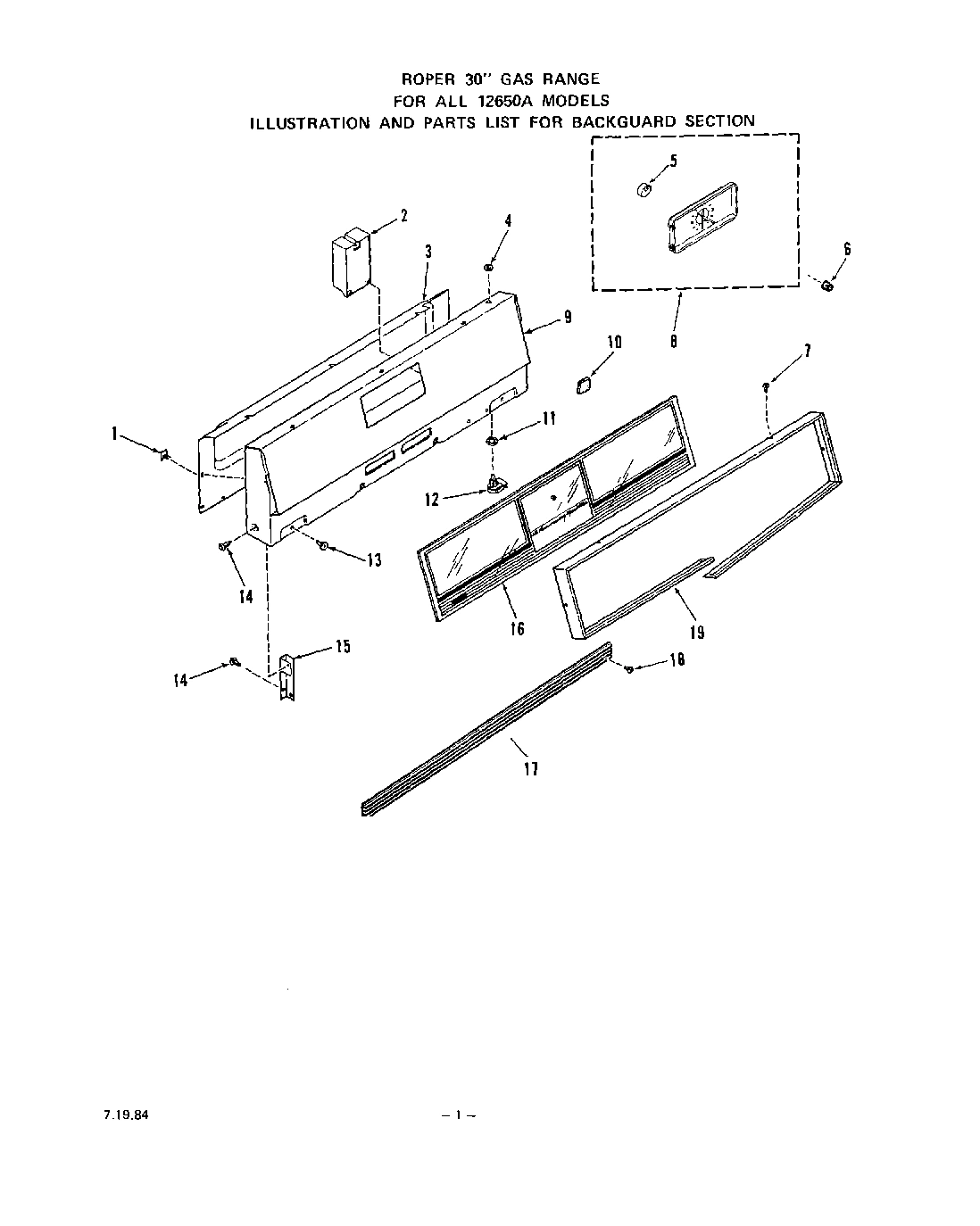

02 - BACKGUARD

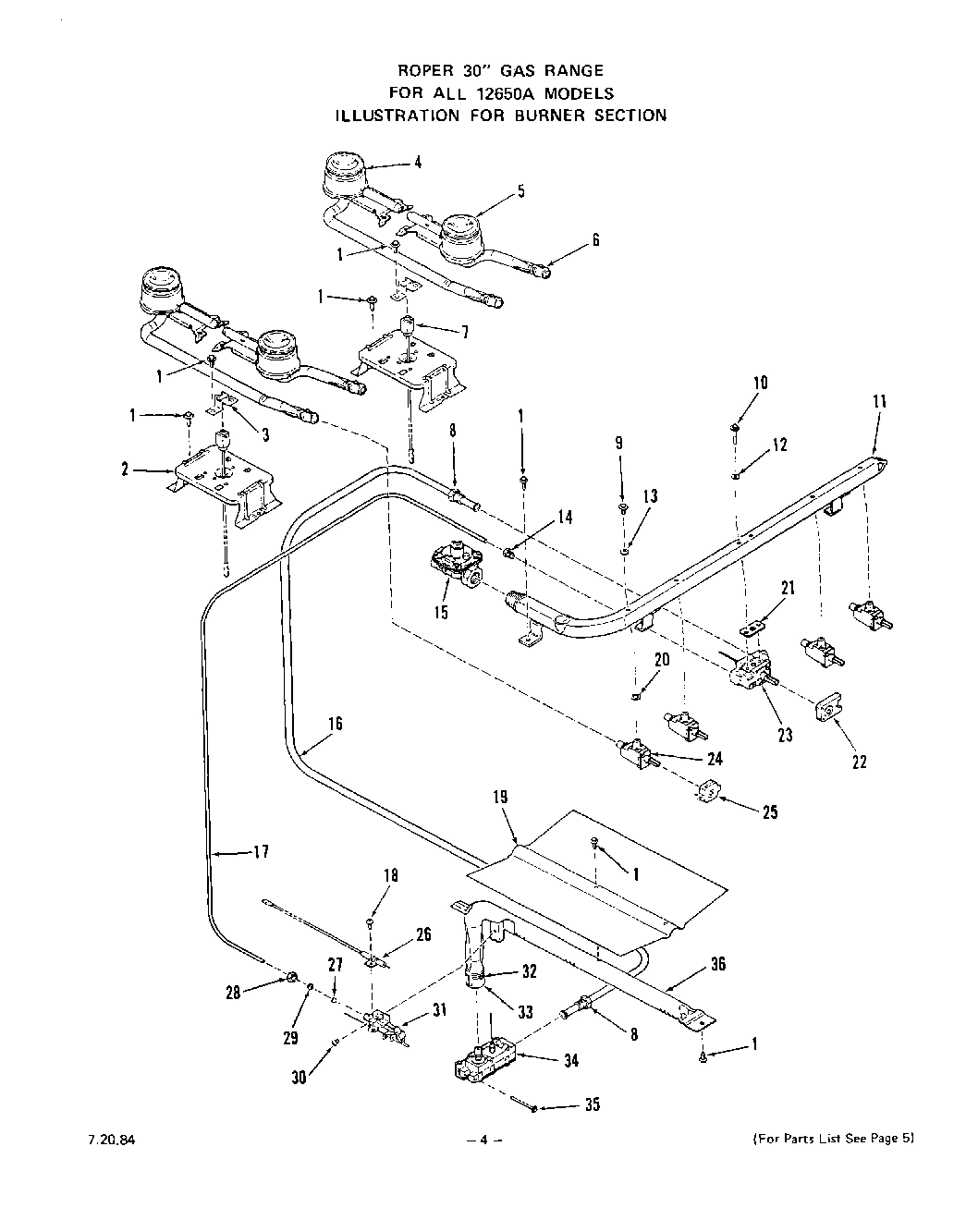

04 - BURNER

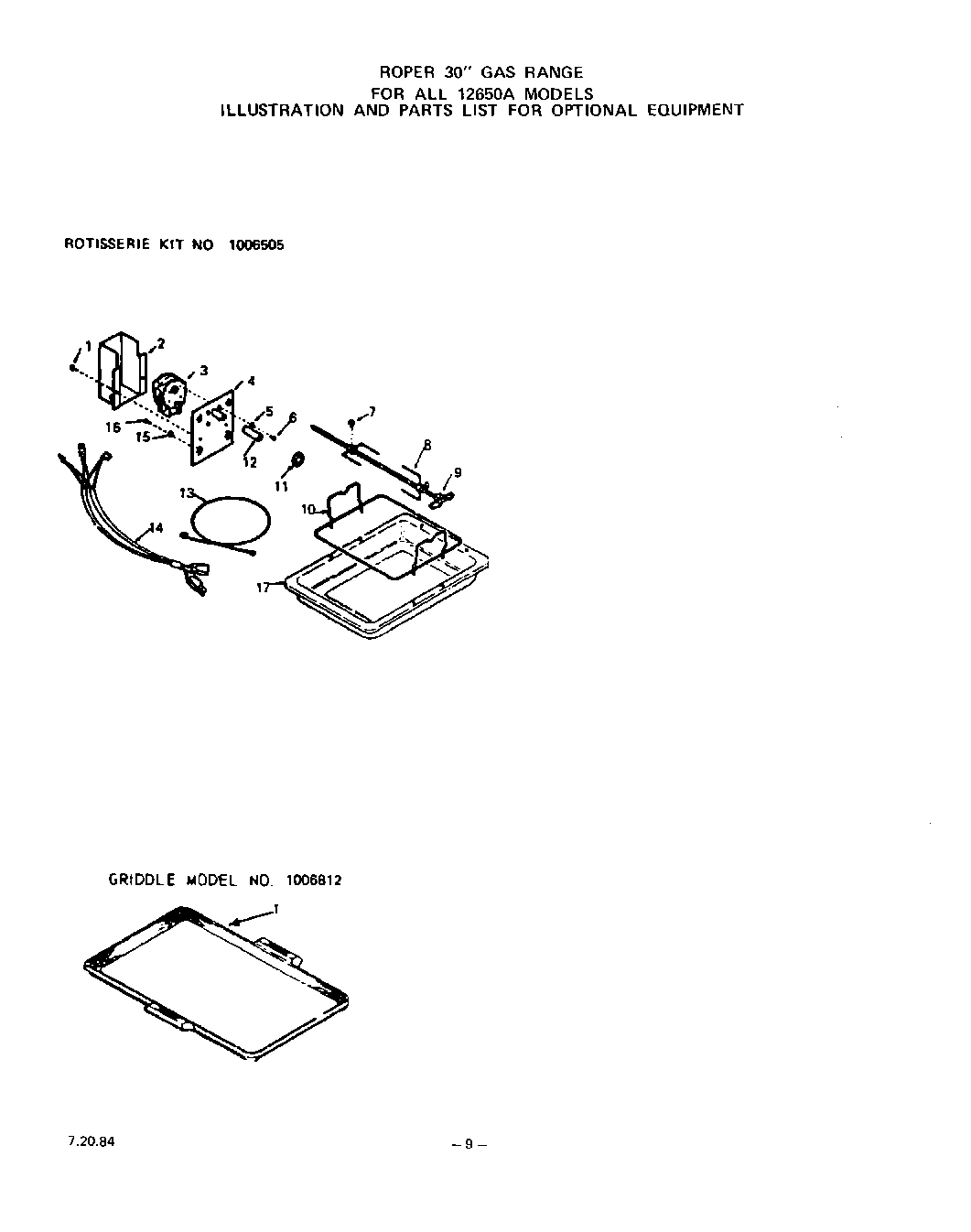

07 - ROTISSERIE , GRIDDLE

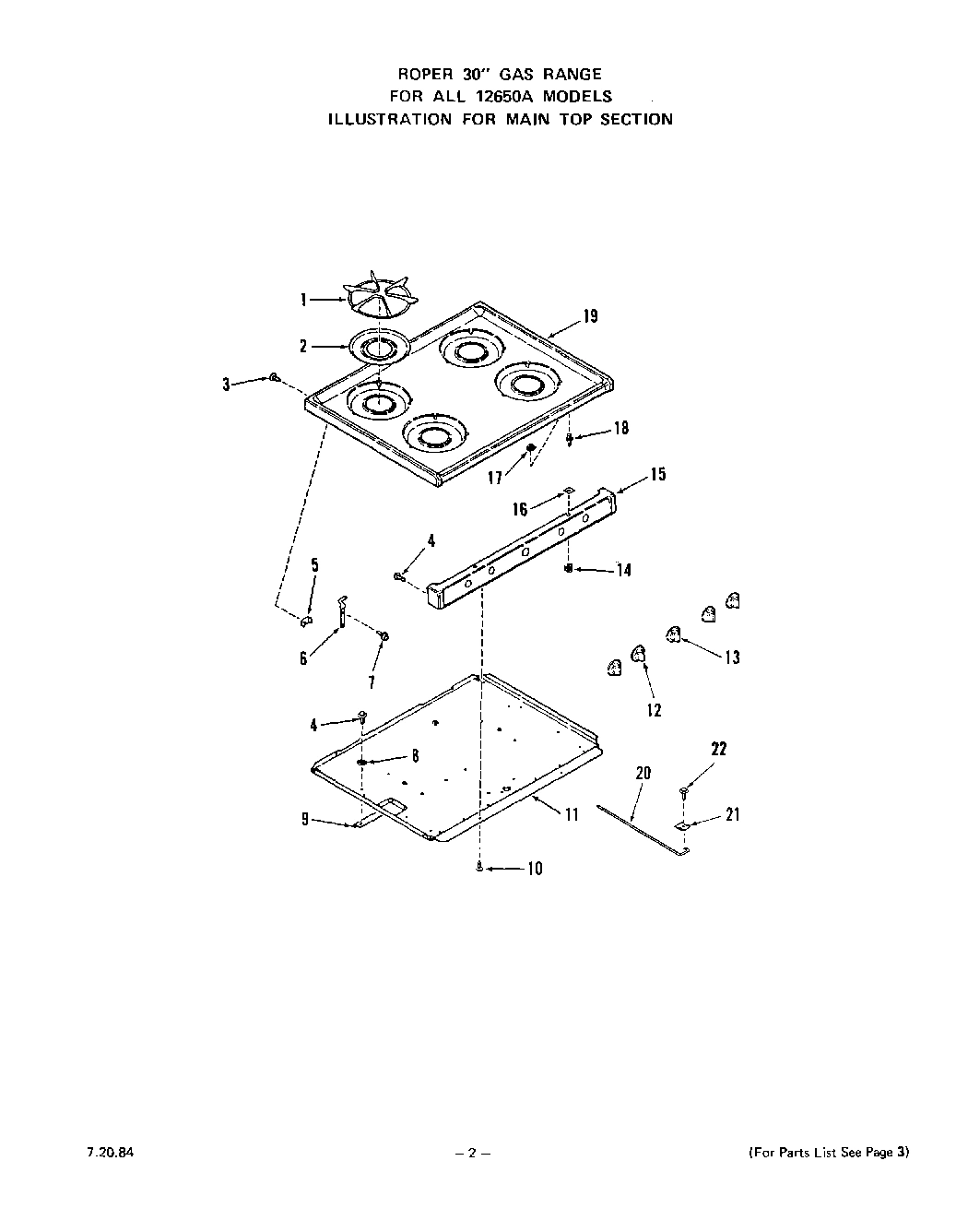

03 - MAIN TOP

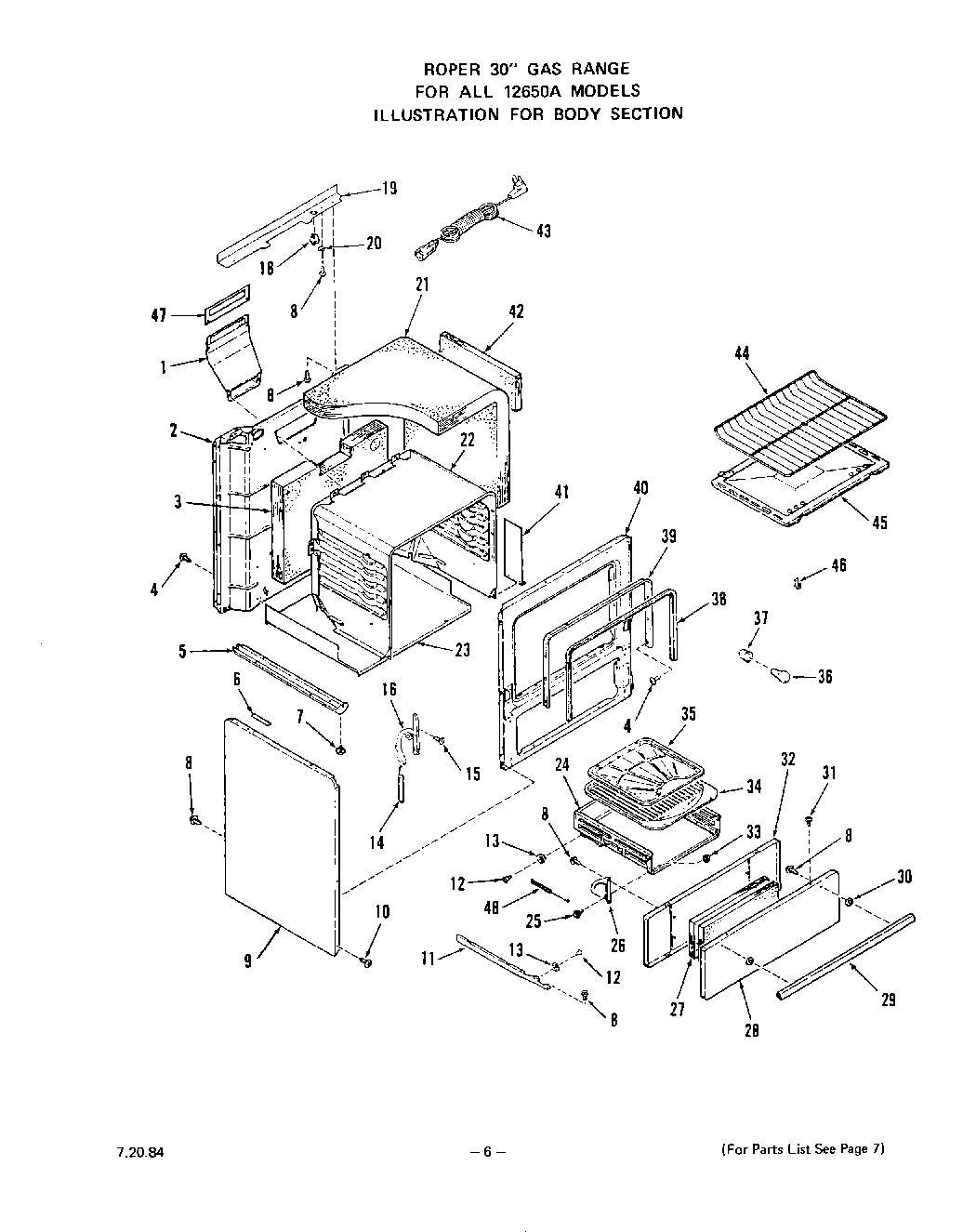

05 - BODY

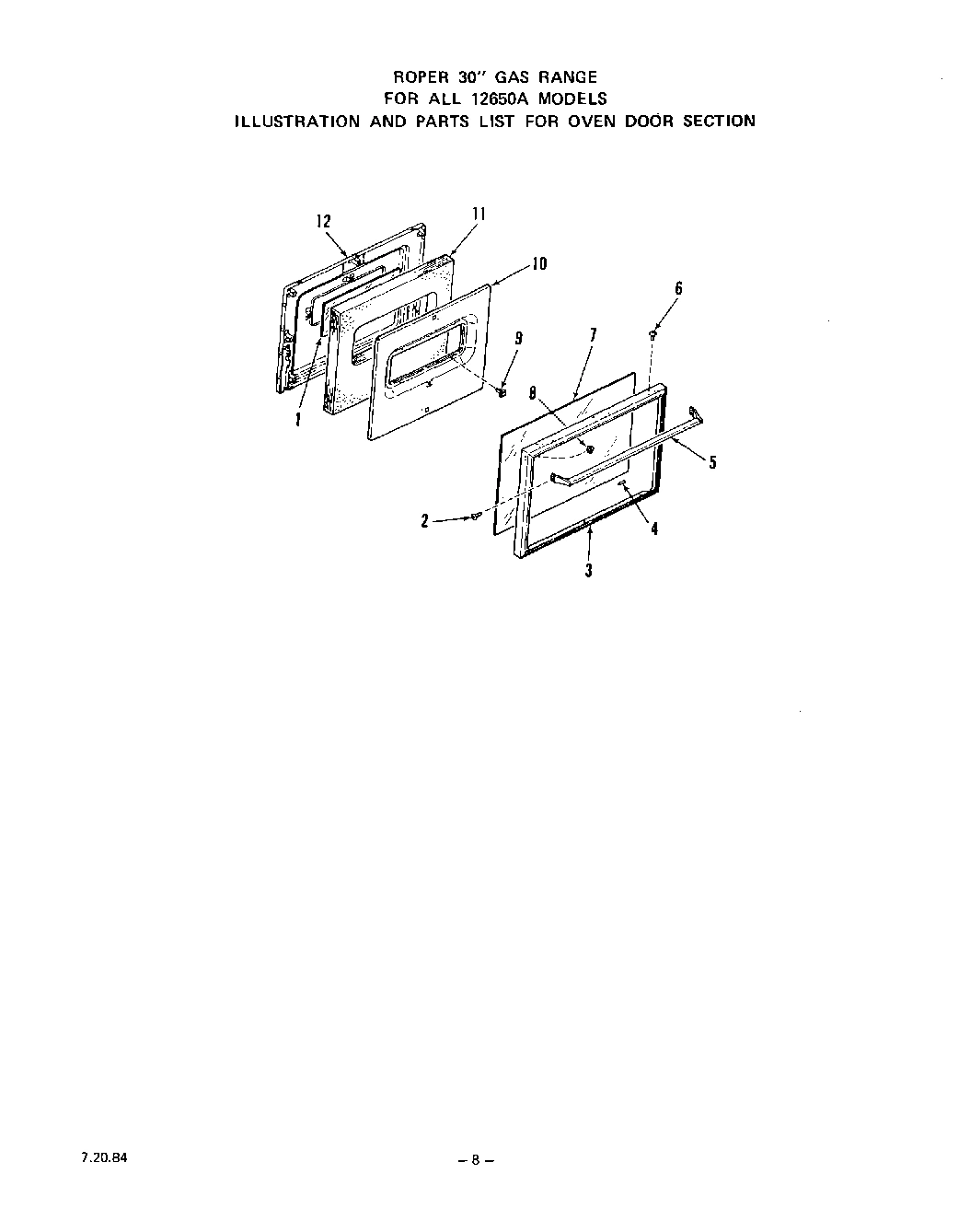

06 - OVEN DOOR

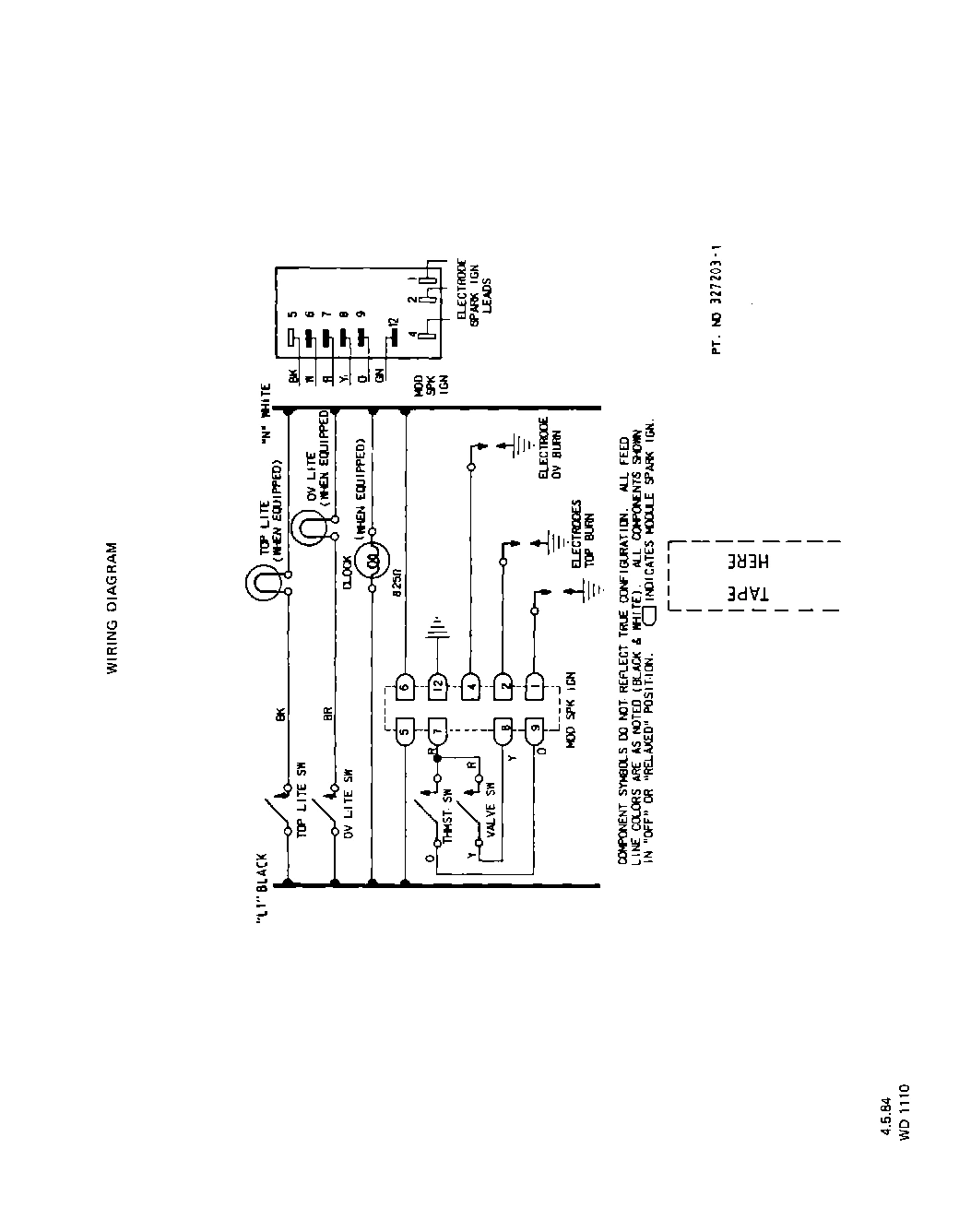

08 - WIRING DIAGRAM
Common parts from model Whirlpool 1265^0A GAS RANGE
xSwitch (For Key No. 3) WPL 280199 Contact Us For Availability
xInstallation Instructions WPL 300668 Contact Us For Availability
xParts Not Shown On Illustration WPL ARI7985A66 Contact Us For Availability
xWire Harness WPL ARI7983A30 Contact Us For Availability
1
Clip WPL 70588 Contact Us For Availability
1
Set-On-Griddle (Optional) WPL 1006812 Contact Us For Availability
1
Screw 10 - 32 x 1/4`` WPL 105771 Contact Us For Availability
1
Top Grate (4 Req) WPL 316786 Contact Us For Availability
1
Flue Deflector WPL 327079 Contact Us For Availability
1
inner glass-oven door WPL 326010 Contact Us For Availability
2
Module - Spark Igniter WPL 326136 Contact Us For Availability
2
Support-Top Burner (Lt. or Rt.) WPL 327073 Contact Us For Availability
2
Cover - Rotisserie Motor WPL 282918 Contact Us For Availability
2
Aeration Pan WPL 322888 Contact Us For Availability
2
Back-Main WPL 327087 Contact Us For Availability
2
Screw 8-32 x 1/2`` WPL 319447 Contact Us For Availability
3
Wire Cover WPL 320767 Contact Us For Availability
3
Bracket-Spark Igniter (Lt. or Rt.) WPL 312453 Contact Us For Availability
3
Rotisserie Motor WPL 106575 Contact Us For Availability
3
Insulation-Oven Back WPL 328142 Contact Us For Availability
3
frame-oven door WPL 326002 Contact Us For Availability
4
Knurled Nut WPL 87403 Contact Us For Availability
4
Rear Top Burner-Rt. or Lt. (Inc`s. 6) WPL 327075 Contact Us For Availability
4
mounting bracket-rotisserie motor WPL 324623 Contact Us For Availability
4
Cushion (5 Req) WPL 112370 Contact Us For Availability
5
Clock Motor WPL 283296 Contact Us For Availability
5
Front Top Burner-Rt. or Lt. (Inc`s. 6) WPL 327074 Contact Us For Availability
5
Lockwasher 3/16`` WPL 1164 Contact Us For Availability
5
Bracket-Hinge (Lt. or Rt.) WPL 327403 Contact Us For Availability
5
Base w/Levelers (Lt. or Rt.) WPL 326050 Contact Us For Availability
5
Handle WPL 303342 Contact Us For Availability
6
Knob-Clock WPL 294810 Contact Us For Availability
6
Air Shutter WPL 327198 Contact Us For Availability
6
Screw 8-32 x 3/8`` WPL 238833 Contact Us For Availability
6
Screw-10-32x1/2`` WPL 316849 Contact Us For Availability
6
Right WPL 320921 Contact Us For Availability
6
Left WPL 320922 Contact Us For Availability
6
Hinge-Main Top WPL ARI7973A61 Contact Us For Availability
6
Spacer-Main Top WPL 326914 Contact Us For Availability
7
Screw 6-20x3/8`` WPL 327621 Contact Us For Availability
7
Right WPL 312455 Contact Us For Availability
7
Left WPL 327216 Contact Us For Availability
7
Electrode-Spark Igniter WPL ARI7977A68 Contact Us For Availability
7
Thumbscrew WPL 70287 Contact Us For Availability
7
Screw 10-32 x 3/4`` WPL 321162 Contact Us For Availability
7
Leg Leveler (4 Req) WPL 326052 Contact Us For Availability
7
outer glass-oven door WPL 326367 Contact Us For Availability
8
Clock w/4 Hr. Timer-Inc`s. 5 WPL 327882 Contact Us For Availability
8
Screw 10-16x7/16`` WPL 327320 Contact Us For Availability
8
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
8
Skewer WPL 88433 Contact Us For Availability
8
Washer WPL 106462 Contact Us For Availability
8
Keps Nut 8-32 WPL 239764 Contact Us For Availability
9
Crosstie WPL 328654 Contact Us For Availability
9
mounting screw 1/4-20 (inc`s. 13) WPL 311455 Contact Us For Availability
9
Rotisserie Spit WPL 100092 Contact Us For Availability
9
Front WPL 327705 Contact Us For Availability
9
Rear WPL 329158 Contact Us For Availability
9
Stiffener-Burner Box Bottom WPL ARI7974A82 Contact Us For Availability
9
White WPL 326055 Contact Us For Availability
9
Almond WPL 326059 Contact Us For Availability
9
Body Side (Lt. or Rt.) WPL ARI7978A22 Contact Us For Availability
9
Screw 10-32 x 17/32`` WPL 104520 Contact Us For Availability
10
Spacer (2 Req) WPL 322302 Contact Us For Availability
10
Screw 10ABx1/2`` WPL 326974 Contact Us For Availability
10
Mounting Screw 10-24 (Inc`s. 12) WPL 318478 Contact Us For Availability
10
Spit Support WPL 232137 Contact Us For Availability
10
Screw 10-32x3/8`` WPL 239113 Contact Us For Availability
10
Insulation Retainer-Oven Door WPL 325996 Contact Us For Availability
11
Pal Nut 3/8-27 WPL 236129 Contact Us For Availability
11
Manifold Pipe WPL 327089 Contact Us For Availability
11
Plug Button WPL 100095 Contact Us For Availability
11
Burner Box Bottom WPL 327250 Contact Us For Availability
11
Right WPL 296327 Contact Us For Availability
11
Broiler Drawer Guide (Inc`s. 12, 13) WPL ARI7979A85 Contact Us For Availability
11
Insulation WPL 325999 Contact Us For Availability
12
Push Switch-Oven Light WPL 298793 Contact Us For Availability
12
Silicone Rubber Gasket WPL 318658 Contact Us For Availability
12
Guide Extension - Rotisserie Motor WPL 282925 Contact Us For Availability
12
Knob-Gas Valve (4 Req) WPL 327484 Contact Us For Availability
12
Shoulder Rivet WPL 70275 Contact Us For Availability
12
gas valve switches WPL 326870 Contact Us For Availability
12
main WPL 327218 Contact Us For Availability
12
lining-oven door WPL 327254 Contact Us For Availability
13
Silicone Rubber Gasket WPL 311692 Contact Us For Availability
13
White WPL 284278 Contact Us For Availability
13
Fixture Wire Lead With 1/4`` Faston & Piggyba WPL 291284 Contact Us For Availability
13
White WPL 321951 Contact Us For Availability
13
Black WPL 321952 Contact Us For Availability
13
fixture wire lead WPL ARI7984A61 Contact Us For Availability
13
Knob-Thermostat WPL 322981 Contact Us For Availability
13
Roller WPL 69006 Contact Us For Availability
14
Loxit Nut WPL 79673 Contact Us For Availability
14
Rotisserie Cord WPL 282924 Contact Us For Availability
14
Catch (2 Req) WPL 24667 Contact Us For Availability
14
Spring-Oven Door WPL 326962 Contact Us For Availability
15
Right WPL 327106 Contact Us For Availability
15
Left WPL 327107 Contact Us For Availability
15
Support-Backguard WPL ARI7972A73 Contact Us For Availability
15
Pressure Regulator WPL 324528 Contact Us For Availability
15
Lockwasher WPL 69603 Contact Us For Availability
15
White WPL 327451 Contact Us For Availability
15
Almond WPL 327457 Contact Us For Availability
15
Manifold Panel WPL ARI7975A94 Contact Us For Availability
15
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
16
Backguard Glass WPL 328523 Contact Us For Availability
16
Tubing 3/8`` WPL 295037 Contact Us For Availability
16
Screw 10-32 x 1/2`` WPL 102376 Contact Us For Availability
16
Washer WPL 310218 Contact Us For Availability
16
Right WPL 326012 Contact Us For Availability
16
Left WPL 326013 Contact Us For Availability
16
Hinge-Oven Door WPL ARI7980A58 Contact Us For Availability
17
Bottom Trim WPL 329236 Contact Us For Availability
17
Tubing 3/16`` WPL 322446 Contact Us For Availability
17
Rotisserie Pan WPL 291397 Contact Us For Availability
18
Screw 6-20x3/8`` WPL 329382 Contact Us For Availability
18
Screw 6-32 x 5/16`` WPL 300000 Contact Us For Availability
18
Strike (2 Req) WPL 299784 Contact Us For Availability
18
Disconnect WPL 232150 Contact Us For Availability
19
Bezel-Backguard WPL 308007 Contact Us For Availability
19
Baffle - Oven Burner WPL 302729 Contact Us For Availability
19
White WPL 328907 Contact Us For Availability
19
Almond WPL 328911 Contact Us For Availability
19
Main Top WPL ARI7976A29 Contact Us For Availability
19
Wire Cover Bottom-Backguard WPL 327251 Contact Us For Availability
20
Silicone Rubber Gasket WPL 313563 Contact Us For Availability
20
Support Rod-Main Top WPL 326066 Contact Us For Availability
20
Clip WPL 106767 Contact Us For Availability
21
Silicone Rubber Gasket WPL 318657 Contact Us For Availability
21
Clamp WPL 326348 Contact Us For Availability
21
Insulation-Oven Top & Sides (1 Piece) WPL 326040 Contact Us For Availability
22
Switch-Thermostat WPL 318432 Contact Us For Availability
22
Screw 10-32x7/16`` WPL 316365 Contact Us For Availability
22
Oven Body WPL 324958 Contact Us For Availability
23
Oven Thermostat (Inc`s. 21) WPL 321983 Contact Us For Availability
23
Bottom-Main WPL 327053 Contact Us For Availability
24
Gas Valve (4 Req) (Inc`s. 20) WPL 324482 Contact Us For Availability
24
Broiler Drawer (Inc`s. 12, 13) WPL 328041 Contact Us For Availability
25
Switch-Gas Valve (4 Req) WPL 312457 Contact Us For Availability
25
Shoulder Bolt WPL 329271 Contact Us For Availability
26
Electrode-Oven Spark Igniter WPL 327217 Contact Us For Availability
26
Right WPL 327482 Contact Us For Availability
26
Left WPL 327483 Contact Us For Availability
26
Hinge-Broiler Door WPL ARI7981A70 Contact Us For Availability
27
Orifice Cup Only (For 31) WPL 318485 Contact Us For Availability
28
Compression Nut 3/16`` WPL 65712 Contact Us For Availability
28
White WPL 326287 Contact Us For Availability
28
Almond WPL 326291 Contact Us For Availability
28
Front Panel-Broiler Door WPL ARI7982A34 Contact Us For Availability
29
Compression Ball Sleeve 3/16`` WPL 65711 Contact Us For Availability
29
Handle WPL 292240 Contact Us For Availability
30
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
30
Spacer WPL 302343 Contact Us For Availability
31
Pilot Only (Inc`s. 27) WPL 318486 Contact Us For Availability
32
Adjustment Screw -Air Shutter WPL 312989 Contact Us For Availability
32
Lining-Broiler Door WPL 327060 Contact Us For Availability
33
Air Shutter WPL 312988 Contact Us For Availability
33
Keps Nut 10-24 WPL 74056 Contact Us For Availability
34
Control Valve (Inc`s. 27 & 31) WPL 321755 Contact Us For Availability
34
Broiler Pan WPL 290171 Contact Us For Availability
35
Screw 10-32 x 2`` WPL 323296 Contact Us For Availability
35
Broiler Pan Grid WPL 313071 Contact Us For Availability
36
Oven Burner (Inc`s. 19, 32 & 33) WPL 319255 Contact Us For Availability
36
Oven Lamp Bulb WPL 111257 Contact Us For Availability
37
Holder-Oven Lamp WPL 295974 Contact Us For Availability
38
seal-oven door WPL 326047 Contact Us For Availability
39
Retainer-Oven Door Seal WPL 327875 Contact Us For Availability
40
Front Frame WPL 326042 Contact Us For Availability
41
Retainer-Insulation (Rt. or Lt.) WPL 328984 Contact Us For Availability
43
Range Service Cord WPL 235822 Contact Us For Availability
44
Oven Rack (2 Req) WPL 326068 Contact Us For Availability
45
Oven Bottom WPL 327083 Contact Us For Availability
46
Thermostat Bulb Clip (2 Req) WPL 115533 Contact Us For Availability
47
Insulation-Flue WPL 327925 Contact Us For Availability
48
Spring-Broiler Drawer (Lt. or Rt) WPL 327481 Contact Us For Availability
× ![]()
